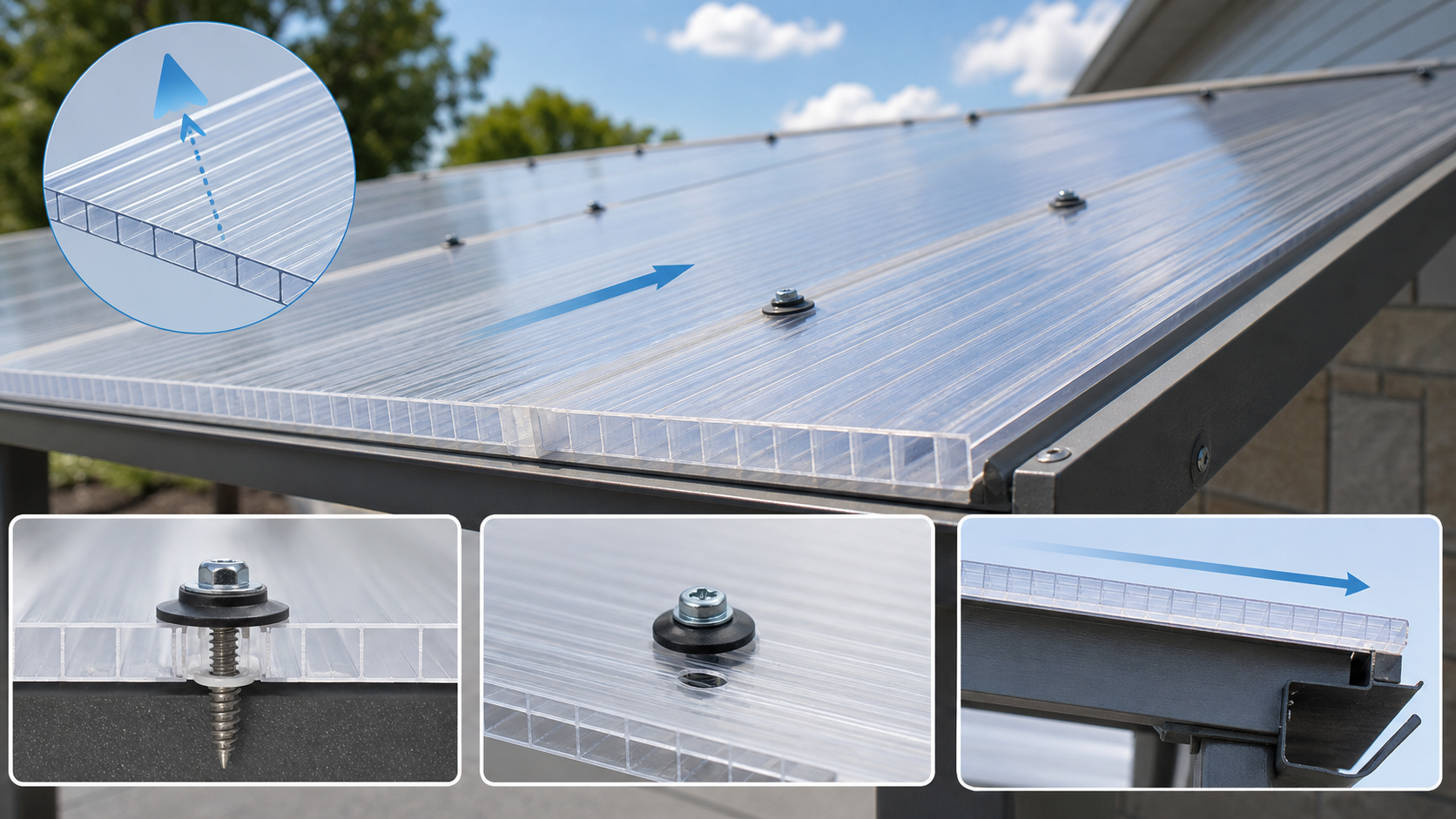

Short answer: Install polycarbonate roof panels as a matched system: correct UV side outward, panel ribs or profile aligned for drainage, thermal-expansion clearance at holes and edges, compatible EPDM-sealed fasteners, and the minimum slope stated by the system supplier. Do not copy dimensions from a different panel profile.
Start with the actual engineering decision
The manufacturer's guide for the exact panel controls fastener location, spacing, overlap, slope, support and accessories. Project wind and snow loads may require closer supports or a different system.
Plastura is the export brand of Jiangsu Xinjincheng New Materials Co., Ltd. Our Jiangsu team extrudes solid and multiwall polycarbonate and reviews fabrication drawings before production. That firsthand workflow helps identify practical questions, but it does not replace project engineering or independent certification.
| Situation | Best-fit approach | What to verify |
|---|---|---|
| UV orientation | Marked protected face toward exposure | Keep marking visible until fixed |
| Fastener hole | Larger than shank where guide requires | Allow thermal movement |
| Washer compression | Seated and weather-tight | Do not dish or crush panel |
| Multiwall end | Approved breathable and solid tapes | Drain condensate while excluding debris |
Build a grade-specific submittal
The submittal for installing polycarbonate roof panels should name manufacturer, grade, sheet structure, nominal thickness, color, coating and protected face. Attach current technical data, relevant test evidence, fabrication instructions and warranty terms. Highlight any proposed deviation from the tested construction instead of burying it in a general equivalence statement.
Compare evidence using the same property, units and test method. Where suppliers report different conditions, ask for clarification or run a project-specific trial. This prevents a precise-looking table from creating a false ranking.
Questions to close during drawing review
Before approving installing polycarbonate roof panels, turn the selection table into drawing notes and submittal actions. The following questions should have named owners rather than being left for the installer or machine operator to decide:
- For uv orientation, record keep marking visible until fixed and identify who approves the result.
- For fastener hole, record allow thermal movement and identify who approves the result.
- For washer compression, record do not dish or crush panel and identify who approves the result.
- For multiwall end, record drain condensate while excluding debris and identify who approves the result.
Also state the consequence if a requirement is missed. Appearance rework, leakage, loss of visibility, part cracking and safety failure require different inspection depth and escalation. This risk ranking determines which feature needs a sample, calculation, supplier declaration or independent test.
A controlled selection and production workflow
- Verify structure, slope, purlin spacing and panel layout against approved drawings
- Store panels flat and shaded and keep masking during cutting
- Cut and predrill using the exact installation-guide dimensions
- Install from the correct edge with specified overlaps, profiles and seals
- Remove masking promptly, water-test drainage and record final inspection
For a useful first article, reproduce the quoted resin grade, thickness, color, coating or UV construction, tooling, supports and downstream exposure. Record drawing revision, lot identity, inspection lighting and acceptance method. A visually acceptable sample does not automatically prove structural, chemical, weathering or regulatory performance.
Make the first article reproducible
A first article for installing polycarbonate roof panels is useful only when its material, geometry, processing and exposure match production. Save measurements, viewing conditions and any functional test alongside the approved drawing. Later lots should be checked against that evidence, not memory.
Protect finish and geometry through packing: isolate faces, support long spans, avoid tight straps over unsupported sheet and mark handling orientation. Traceability should continue until the customer completes incoming inspection.
What our factory needs before quotation
- Application, installation location and expected service environment.
- 2D drawing or finished length, width, thickness and tolerances.
- Solid, multiwall, profiled or acrylic construction and required grade.
- Clear, tint, matte or diffusing appearance with an approved reference where needed.
- UV exposure, coated side, fabrication, holes, bends and edge requirements.
- Order quantity, packing restrictions, destination and required documentation.
The factory can review manufacturability, sheet construction, cutting and packing. The responsible project professionals retain approval for structure, fire, safety, security, waterproofing and code compliance.
Failure modes to catch before release
- Installing the UV-protected face inward
- Overtightening fasteners until the sheet deforms
- Sealing every multiwall cell end so condensation cannot drain
- Using an incompatible silicone, PVC gasket or cleaner
Investigate failures as interactions among material, residual stress, support, chemical exposure, temperature and time. Do not change several variables at once: preserve the affected sample, compare it with the approved reference and document the corrective trial.
Primary references
- Palram explanation of polycarbonate UV absorption and protected-side installation. Confirm the current edition and applicability to the quoted grade or project.
- Plaskolite POLYGAL multiwall fabrication and installation guide. Confirm the current edition and applicability to the quoted grade or project.
Frequently asked questions
Why are holes oversized?
They provide clearance for thermal expansion and contraction; use the exact hole size in the panel-system instructions.
Which side faces the sun?
The side marked as UV protected faces the exposure unless the supplier confirms two-sided protection.
How much roof slope is needed?
Use the minimum stated for the exact panel and system, then confirm drainage and local code requirements.
Send a specification for review
Review the related Plastura product or application page, or send the drawing and service conditions for a written quotation. State any required test method and acceptance threshold instead of relying on a generic material claim.
Editorial boundary: This guide supports material selection and supplier communication. It is not a project warranty, structural calculation, safety certification or legal interpretation.
